Products

Engineered for critical lifting.

A small, considered range of crane-safety and electrical-management products - designed and manufactured by Origin Ascent for the punishing realities of overhead crane environments.

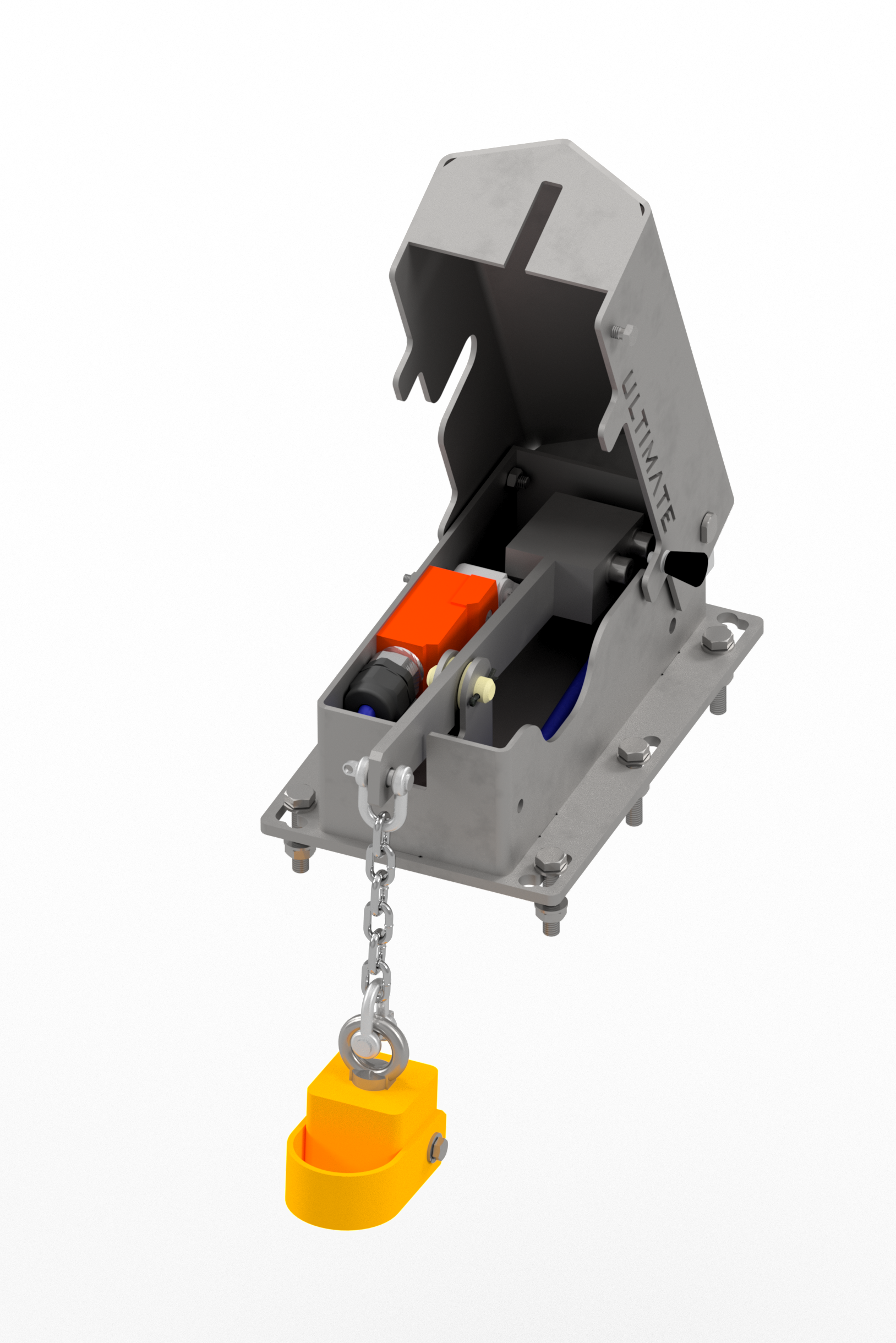

Available now The Ultimate Limit stainless-steel overwind safety device for overhead cranes by Origin Ascent
Product No. 01

The Ultimate Limit.

An overwind safety device engineered for demanding crane environments - preventing two-blocking while standing up to dust, water, impact and tampering. Stainless construction. Lockable cover. IP66/67 limit switch with 10 million rated cycles.

Mech. Cycles
10 000 000
Ingress Protection
IP 66 / IP 67
Max. Rope
Ø 28 mm
Voltage
24 – 110 V
Operating temperature
−25 … +75 °C
Contacts
2 NC + 1 NO
Enquire / Order →
What sets it apart

Built for the real world, not the catalogue.

i

Protective enclosure

Stainless steel housing with particle and drip guarding, impact and tamper resistant, lockable cover with optional condition monitoring.

ii

Safety limit switch

10 000 000 mechanical cycles, IP 66 and IP 67 rated, 2 NC and 1 NO contacts, operating temperature −25 … +75 °C, shock resistant.

iii

Operation

Robust actuation mechanism, quick 4-pin plug connection, high-visibility striker weight, spring-loaded index plunger.

iv

Installation

Adjusted on site. Maximum rope size Ø 28 mm. Control voltage 24…110 V at 50/60 Hz. To be installed on termination rope fall only.

Product No. 02

Cable Catenary System.

A purpose-built festooning solution for managing trailing cables on overhead cranes and travelling machinery. Quiet, low-friction operation; engineered carriers; long service life.

Status
Contact for tailored solution!
Format
Round & flat cable
Application
Lifting equipment power supply
Carriers
Stainless Steel or Plated Carbon Steel
Register interest →
Contact for tailored solution! Origin Ascent Cable Catenary System for managing trailing cables on overhead cranes
Order & Enquire

Ready to spec your next crane?

Whether you need a single Ultimate Limit shipped, want early access to the Cable Catenary System, or have a more complex requirement - we'll respond personally.

Talk to us →
